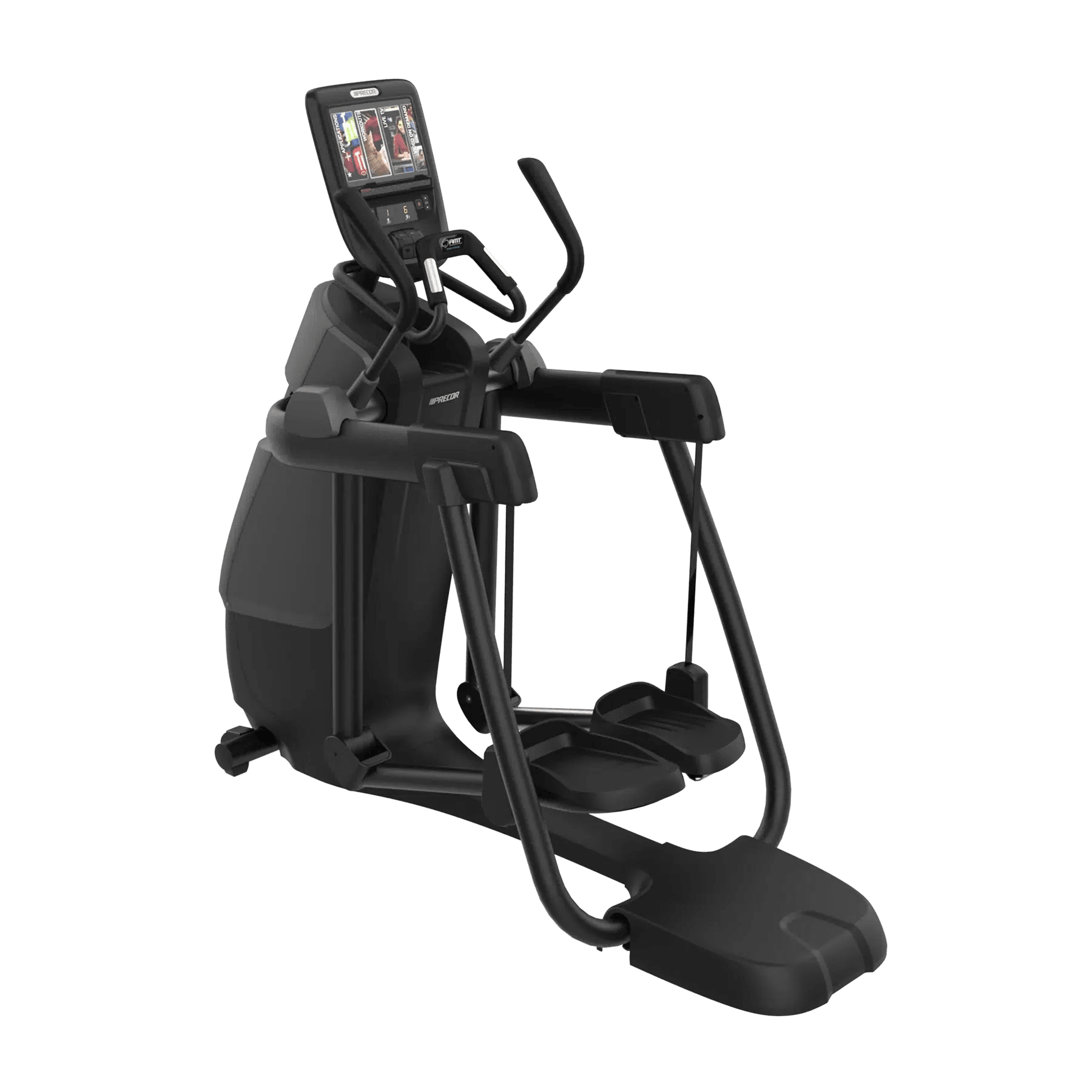

Precor AMT 865 Adaptive Motion Trainer

Download Brochure

[SPECIFICATION]

Equipment Features






Biomechanics
Biomechanics validated by Western Washington University Biomechanics Lab for users of all fitness levels and sizes, from the 5% size female to the 95% size male user. Excellent stability and freedom of movement for users of all sizes.


Covers
Side panels are easy to remove for servicing.


Cable Management
Optional


Transport Wheels
Integrated


Bearings and Pivot Points
The smooth feel is optimized by using large bearings and oversized pivot shafts.


Water Bottle and Accessories Holder
Yes. Accessories holders for water bottle, reading communication devices and portable music player.


Foot Pedals
Foot pedals with toe cups enable user to optimize muscle involvement. Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.


Stride Dial™
By selecting Stride Dial™ from the Workout Progress Panel, users see stride length changes in real-time to determine the muscle groups being worked. By touching the Views button, users can add the Stride Dial™ to the Icon bar at the bottom of the touch screen.


Dual Action
Dual action provides both upper and lower body workout. Arms are engaged with pushing and pulling motion to provide the ultimate in total body engagement.


Upper Body Handlebars
Moving


Step-on Platform
Step on platform in the rear is polypropylene for durability. Platform enables the user to step onto the foot pedals while identifying how far the foot pedals may extend from the back of the machine.


Adjustable Stride Length
Naturally adjust stride length without the need to control settings. From zero to 27 inches (69 cm), to match the desired workout for each unique users.


Open Stride™
Open Stride™ is a unique feature that allows exercisers to adapt their stride height from 6.8 to 10 inches (17 to 25 cm) and stride length from zero to 36 inches (0 to 91 cm)





Resistance System



Minimum Watts
20


Maximum Watts
375


Resistance System
Twenty resistance levels ranging from 20 watts (level 1 at 60 SPM, zero stride length) to 375 watts (level 20 at 120 SPM, max stride length).


Resistance Levels
1-20





Console Features

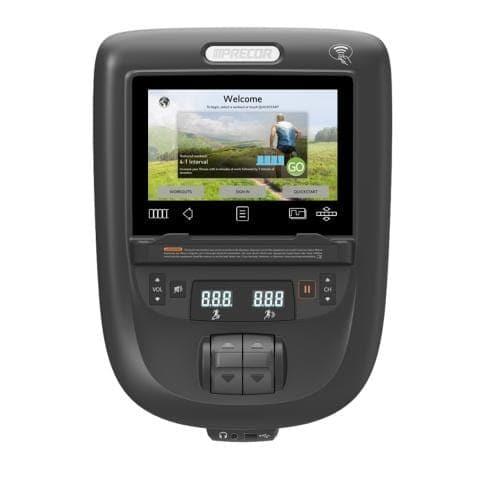

Console Type
10.1 in / 25.7 cm LCD Capacitive Touch Screen


Numeric Keypad
Yes


Motion Controls
Yes, in software


Tactile Dome Keys
Vol up/down, mute, Channel up/down, pause workout


QuickStart™
Yes


Console Language(s)
English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish


Units Selection
Metric and U.S. Standard


Maximum Workout Time
120 minutes


Preset Programs

Lose Weight
Fat Burner
Aerobic
Be Fit
Manual
1-1 Interval
2-1 Interval
4-1 Interval
Rolling Hills
Mountain Peaks
Hill Climb
Push Performance
1-4 Interval
1-2 Interval
5 K


Electronic Readouts
Resistance Level
Open Stride Level
Total Distance, Distance Remaining
Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts
Time Elapsed, Time Remaining, Time in HR Zone, Segment Time
Strides/Min, Average Strides/Min, Total Strides
Heart Rate, Average Heart Rate, Max Heart Rate


Pause Range
1 to 300 seconds


Default Pause Setting
30 seconds





Heart Rate Monitoring



Touch
Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease of use by exercisers of all sizes


Telemetry
Equipped for heart rate telemetry reading using a chest strap.


Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.






Integrated Entertainment Options



Closed Captioning
Yes, CC1-4, Text 1-4 (North America only)


Video decoding
MPEG-2, MPEG-4, H.264


Global TV Support
Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C


Mobile Device Charger
Yes


Reading Rack
Integrated


Personal Viewing Screen (PVS) (Specification)
Supports NSTB, PAL, PAL BG Standards, Closed Caption


Video inputs
RF, HDMI (media adapter only - future)





Network Capabilities



RFID / NFC
ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future)


Ethernet
10/100/1000 Base-T


Diagnostics
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.


FitLinxx Compatible
N/A


CSAFE Enabled
N/A


Wifi
802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation


Bluetooth
Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)


Preva® Network Capable
Yes





Equipment Specifications



Minimum Space Between Foot Pedals (inches / cm)
2 inches / 5 cm


Foot Pedal Dimensions (inches / cm)
14.5 x 7.5 inches / 37 x 19 cm


Step-up Height (footplate at highest position)
18.5 inches / 47 cm


Maximum User Weight
350 lbs / 159 kg


Step-up Height (footplate at lowest position)
5.5 inches / 14 cm


Standard Frame Colors
Black Pearl





Equipment Dimensions and Weight



Length
80 inches / 203 cm


Width
35 inches / 89 cm


Height
69 inches / 175 cm


Machine Weight (base equipment)
422 lbs / 191 kg





Shipping Dimensions and Weight



Length
80 inches / 203 cm


Width
32 inches / 81 cm


Height
67 inches / 170 cm


Shipping Weight
505 lbs / 229 kg





Power Requirements



Equipment
Powered


International 240 VAC
Applicable Country-specific power cord


U.S. & Canada 240 VAC
N/A


U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle


Personal Viewing Screen (PVS)
Integrated


Optional Power Supply
N/A




Regulatory



cTUVus
Yes


IEC CB
Yes


FCC
Yes


ETL
Yes


CE
Yes


EN957
Yes


ASTM
Yes

Commercial Warranty:

• Frame and welds: 7 Years

• Parts: 3 Years

• Labor: 1 Year



Residential Warranty:

• Parts: 10 Years
• Console: 3 Years
• Labor: 1 Year
• Frame: Lifetime
